Product Description
Item #: E28852

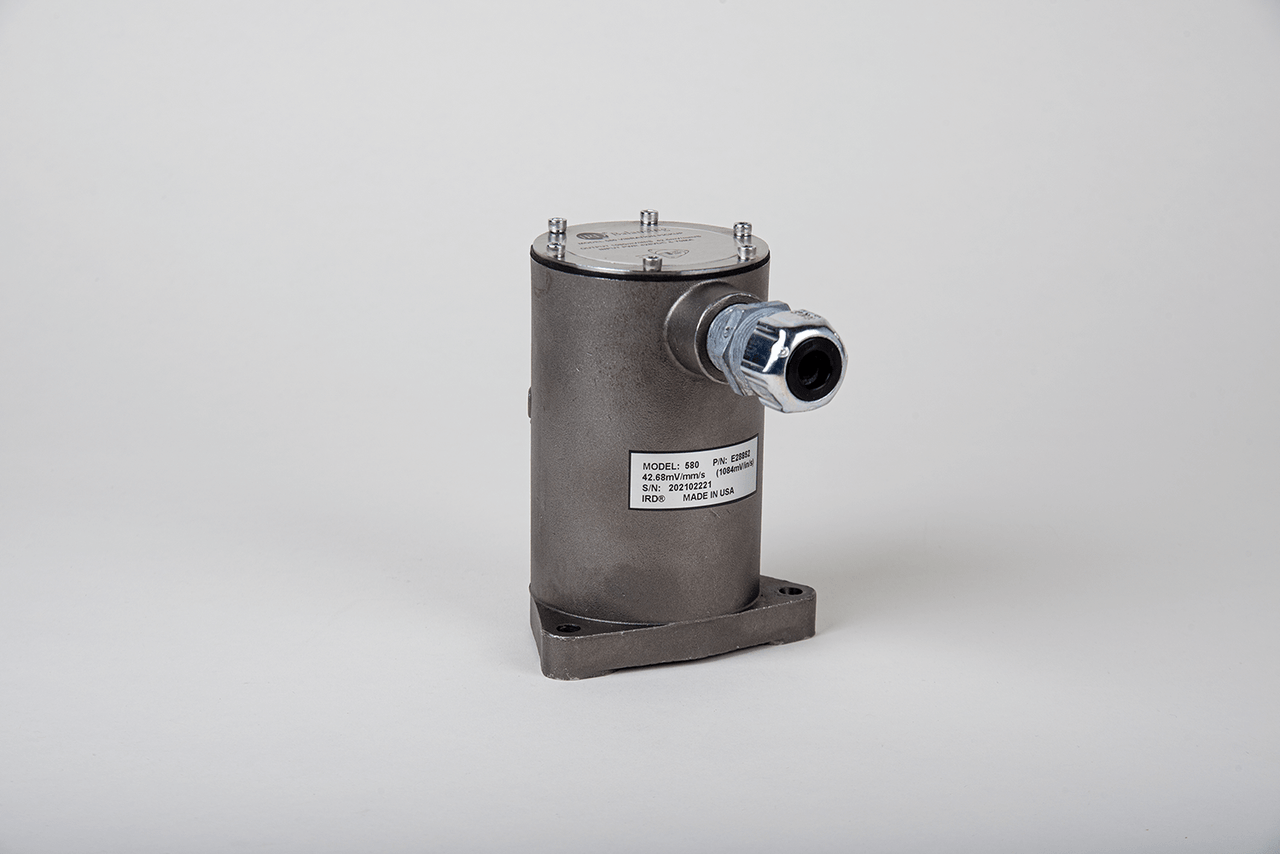

The Model 580 is a solid-state, seismic velocity sensor for permanent installation on industrial machinery. It has no moving parts. The water-proof case provides an exceptionally long, trouble-free service life under adverse conditions, such as in mills, refineries, power plants, and mines. The broad frequency range – 120 to 120,000 CPM – makes this sensor suitable for nearly any machine.
The cast stainless steel housing is designed to withstand mechanical abuse and is resistant to most chemicals. Electrical connections to the sensor are located within the housing and protected from the environment. A threaded boss is provided on the case for cable installation through conduit or a sealing gland.
The case is electrically insulated from the internal components, so the Model 580 sensor can be used on insulated-bearing machines or where good electrical grounding is not practical. The Model 580 sensor can be used in hazardous areas (see specifications)
General Specifications:
- Frequency Range - 2 to 2,000 Hz within ±10% @ 70° F (21° C)
- Sensitivity - 1080 mV/in/s (42.52 mV/mm/s)
- Magnetic Field Sensitivity - .00015 in/s equivalent @ 60Hz (.0038 mm/s equivalent)
- Useable Amplitude - 0-6 in/s (0-152 mm/s)
- Shock - 500g peak maximum
- Output Impedance - 10 Ω
- Mounting - Three (3) holes for ¼ in. (6 mm) diameter bolts, 120 degrees apart on 3 ½ in. (89 mm) diameter circle. Footprint is 4 ¼ in. (108mm) diameter circle.
- Construction - Type 316 stainless steel case; Neoprene cover gasket, stainless steel hardware
- Connector - Internal 3-screw barrier strip, AWG 14 to 20 wire
- Grounding - Case isolated from signal ground
- Power Input - +18 to +26 VDC @ 10 mA
- Temperature Range - Operating: -40° F to 200° F (-40°C to 93°C)
- Housing - Waterproof to 30psi
- Radiation - 10^7 RAD total dose
- Withstand Voltage - 400 VDC or peak AC max, case to circuit
- Approvals - INTRINSICALLY SAFE: Class I, II, III; Groups A,B,C,D,E,G when used with safety barriers. NON-INCENDIVE: Class I,II,III: Groups A,B,C,D,G; Division 2 (without safety barrier)
Product Made in USA
