Product Description
Item #: E02785

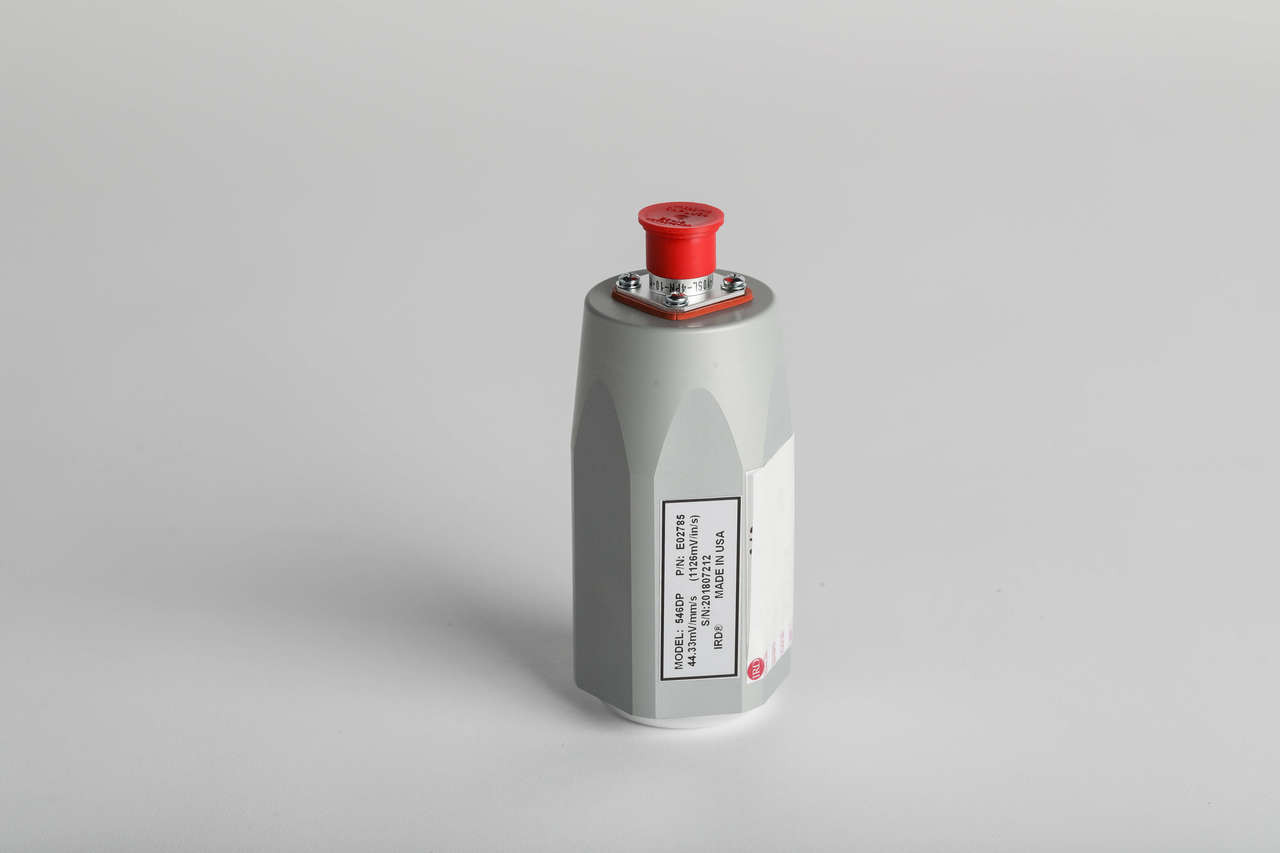

The Model 546DP is a high-sensitivity velocity transducer with moving internal solenoid for direct prod (DP) attachment to vibrating parts. With the optional probe magnetically attached to the vibrating part and the case rigidly mounted to a fixed reference, voltage output is directly proportional to vibration velocity. The magnet probe eliminates alignment problems when installing the transducer.
Used with the following optional accessories:
- E10170 - Magnetic Tip
- E04521 - 12' long instrument interconnect cable with 3-pin connectors
- E04690 - 25' long instrument interconnect cable with 3-pin connectors
- E04691 - 50' long instrument interconnect cable with 3-pin connectors
- E20433 - 12' long instrument interconnect cable with 9-pin circular twist-on connector
- E30219 - 25' long instrument interconnect cable with 9-pin circular twist-on connector
Product Made in USA
